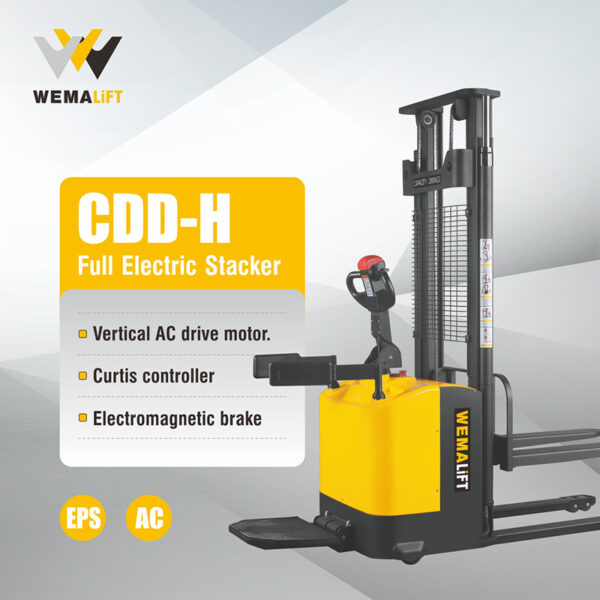

CDD-H Ride-on Full Electric Stacker 1500kg, 2000kg

Categories: ,
  • Description
  • Inquiry

Full Electric Stacker 1500kg, 2000kg

  • Vertical AC drive motor.
  • With power steering system (EPS).
  • Curtis drive controller, Curtis steering controller.
  • Electromagnetic brake.
  • The drive speed will slow down automatically when steer for safe.
  • The brakes works after turn off power.
  • Heavy Duty CJ Mast
  • 2 masts
  • 3 masts







TypeCDD-H
Capacity kg1500/2000
Max.lifting height mm2500/3000/3500/4000/4500/5250/5500
Extended mast height mm2950/3450/3950/4450/4940/5690/5940
Lowered mast height mm1740/1990/2240/2490/1990/2243/2325
Overall Lengthmm2050(2470)
Overall width mm850
Fork Lengthmm1150
Overall Forks Widthmm550/680
Min. Fork Heightmm90
Aisle width pallet size 1×1.2m( 1.2m cross forks) mm2210/2600
Aisle width pallet size 1×1.2m (1.2m along forks) mm2180/2580
Turning Radiusmm1580/1990
Drive Motorkw2.2
Lifting Motorkw2.0/3.0
BatteryV/Ah24/210
