Full Electric High Lift Truck

Category:
  • Description
  • Inquiry

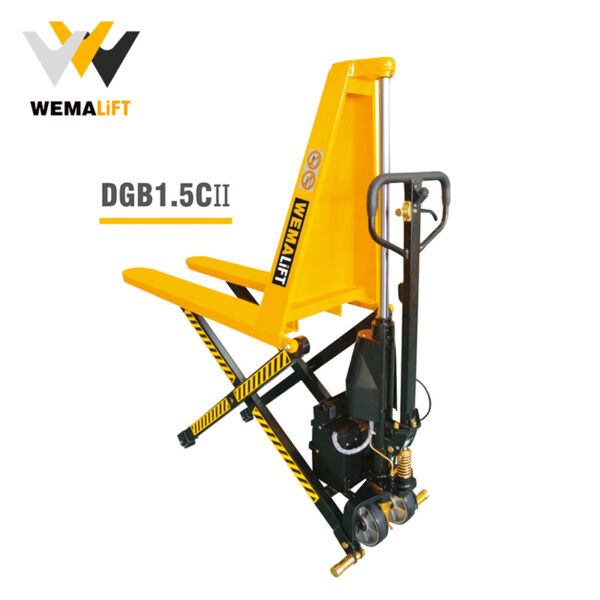

Full Electric High Lift Truck

  • Scissor lift pallet truck max. lifting up to 800mm.
  • Heavy duty design to reliable quality.
  • Takes 10-12 seconds pumping from the bottom to the top.
  • Safety overload system prevents the truck from being used beyond its rated capacity.
  • Lifting by both manual and electric, lowering by manual.





ModelDGB1DGB1DGB1.5DGB1.5
Load Capacity1000100015001500
Min/Max. Height85/80085/80085/80085/800
Fork Width520680520680
Fork Length1140/15001140/15001140/15001140/1500
Voltage12/6312/6312/6312/63
Input/output Voltage220~240/12220~240/12220~240/12220~240/12
Net Weight140/165146/171142/167148/173
Packing Size218*58*71218*74*71218*58*71218*74*71
Load in 20′ container60/3042/2160/3042/21



ModelDGB1BDGB1BDGB1.5BDGB1.5B
Load Capacity1000100015001500
Min/Max. Height85/80085/80085/80085/800
Fork Width560680560680
Fork Length1190119011701170
Voltage12/6812/6812/7512/75
Input/output Voltage220~240/12220~240/12220~240/12220~240/12
Net Weight158163170175
Packing Size214*62*111214*62*111214*62*111214*62*111
Load in 20′ container72567256



ModelDGB1CMDGB1CMDGB1.5CIIDGB1.5CII
Load Capacity1000100015001500
Min/Max. Height85/80085/80085/80085/800
Fork Width540680540680
Fork Length1170117011501150
Voltage12/5212/5212/5212/52
Input/output Voltage220~240/12220~240/12220~240/12220~240/12
Net Weight130140150160
Packing Size214*62*111214*62*111214*62*111214*62*111
Load in 20′ container72567256
