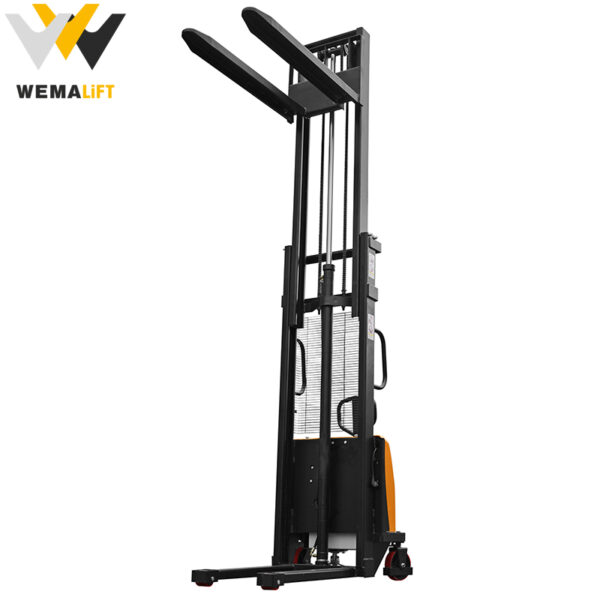

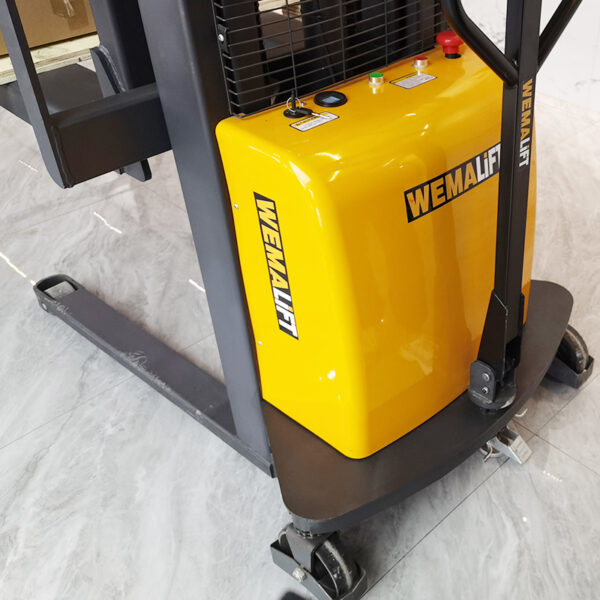

SPN Semi Electric Stacker with Straddle Leg

Category:
  • Description
  • Inquiry

Semi Electric Stacker with Straddle Leg

  • Reliable hydraulic system, to avoid oil leaking problem
  • Easy operation foot brake
  • Tongyi battery, for long service life
  • Strong mast material ensure high capacity
  • Foot brake is simple and easy to maintain





Model SPN10-S SPN15-S SPN20-S
Load Capacity (kg) 1000 1500 2000
Load Center (mm) 500 500 500
Max. Lifting Height (mm) 1600/2000/2500/3000/3500
Lower Mast Height (mm) 2065/1565/1815/2065/2315
Max. Overall Height (mm) 2065/2532/3032/3532/4032
Overal Length (mm) 1835 1835 1835
Overal Width (mm) 800/900 800/900 800
Lowered Fork Height (mm) 90 90 90
Turning Radius (mm) 1400 1400 1400
Fork Dimension (mm) 1150*160*55
Ground Clearance (mm) 30 30 30
Battery Capacity  12V/120AH 12V/120AH 12V/120AH
Battery Charger  12V/15A 12V/15A 12V/15A
Power Unit DC, 12V, 1.6KW
Net Weight (kg) 450±30 450±30 450±30
