SPS Manual Lift Table Double Scissor 500/800/1000/1500KG
- Description
- Inquiry

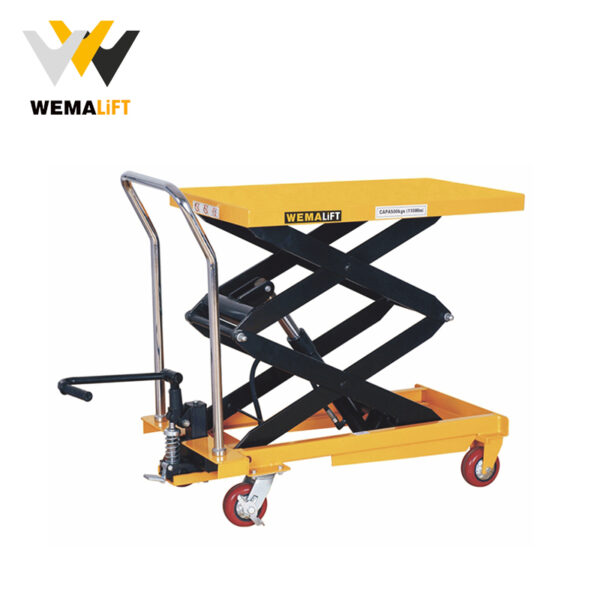

Manual Lift Table Double Scissor 500/800/1000/1500KG
- Foot pedal to lift up, easy operation.
- Load capacity 500kg, 800kg, 1000kg, 1500kg
- Hand operated table descent control
- Hand tips/press button to lower down the table
- Double Pump, heavy duty design
- Oil-leaking proof design
| Model | PTS500 | PTS800 | PTD1000 | PTS1500 |
| Load Capacity (kg) | 500 | 800 | 1000 | 1500 |
| Min. Height (mm) | 360 | 450 | 500 | 500 |
| Max. Height (mm) | 1500 | 1500 | 1700 | 1700 |
| Table Dimension (mm) | 905*500*50 | 1200*610*80 | 1200*610*80 | 1200*610*80 |
| Dia. of the wheel (mm) | Φ125 | Φ125 | Φ150 | Φ150 |
| Net Weight (kg) | 107 | 142 | 229 | 280 |
| Packing Dimension (mm) | 1070*520*360 | 1380*610*460 | 1370*610*500 | 1370*610*500 |
| Load in 20′ container (pcs) | 132 | 60 | 52 | 52 |
