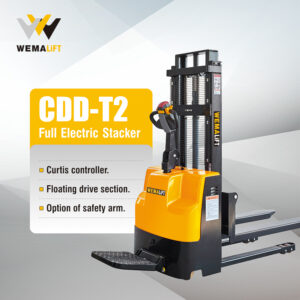

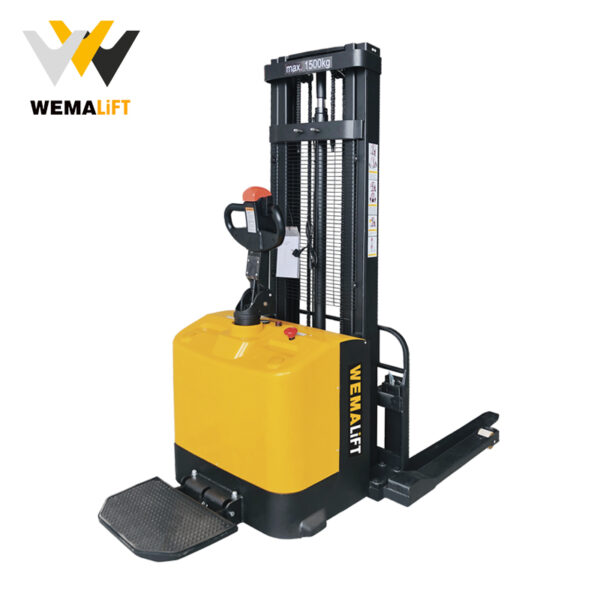

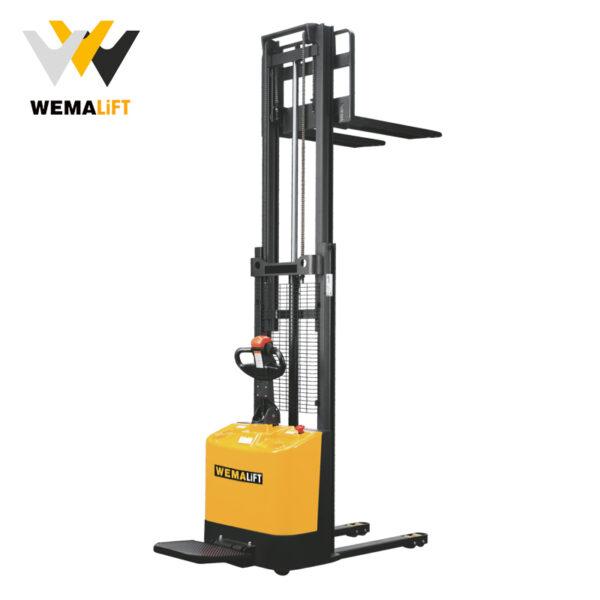

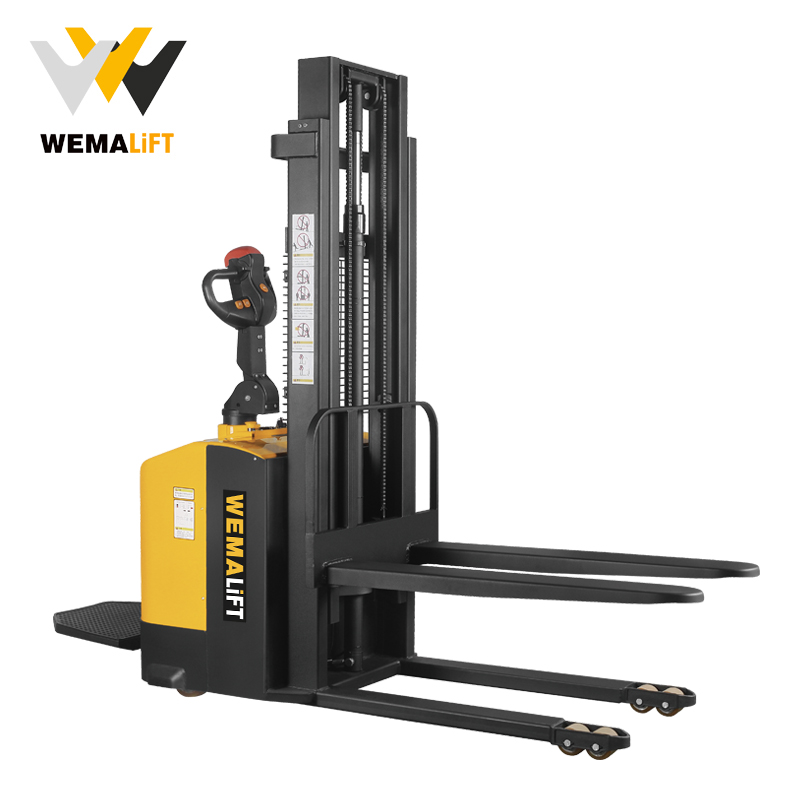

CDD-T 1500kg DC motor Electric Stacker

CDD-T Full Electric Stacker with Central Drive Wheel
CDD-T
CDD-T_2
CDD-T
CDD-T_3
CDD-T_4
CDD-T_5
CDD-T-6
CDD-T-2
CDD-T-5
CDD-T-1
CDD-T-4
CDD-T-3
CDD-T
CDD-T_2
CDD-T
CDD-T_3
CDD-T_4
CDD-T_5
CDD-T-6
CDD-T-2
CDD-T-5
CDD-T-1
CDD-T-4
CDD-T-3

CDD-T 1500kg DC motor Electric Stacker

Category:
  • Description
  • Inquiry

Ride-on Type Electric Stacker

  • It is innovitation design according to the market demand.
  • Easy and convenient operation of light duty up to 1500kg/2000KG, max. lifting height to 6000mm.
  • The handle is designed to smart movement.
  • The stacker with advanced design and excellent performance.











Type CDD1516T CDD1520T CDD1525T CDD1530T CDD1535T CDD1540T
Capacity (kg) 1500 1500 1500 1500 1500 1500
Max.lifting height (mm) 1600 2000 2500 3000 3500 4000
Extended mast height (mm) 2065 2532 3032 3532 4032 4532
Lowered mast height (mm) 2065 1565 1815 2065 2315 2565
Overall length (mm) 1860 1860 1860 1860 1860 1860
Overall width (mm) 925 925 925 925 925 925
Standard battery capacity 80Ah 80Ah 80Ah 80Ah 80Ah 80Ah
Aisle width pallet size1x1.2m( 1.2m cross forks) (mm) 1986 1986 1986 1986 1986 1986
Aisle width pallet size 0.8×1.2m (1.2m along forks) (mm) 1920 1920 1920 1920 1920 1920
