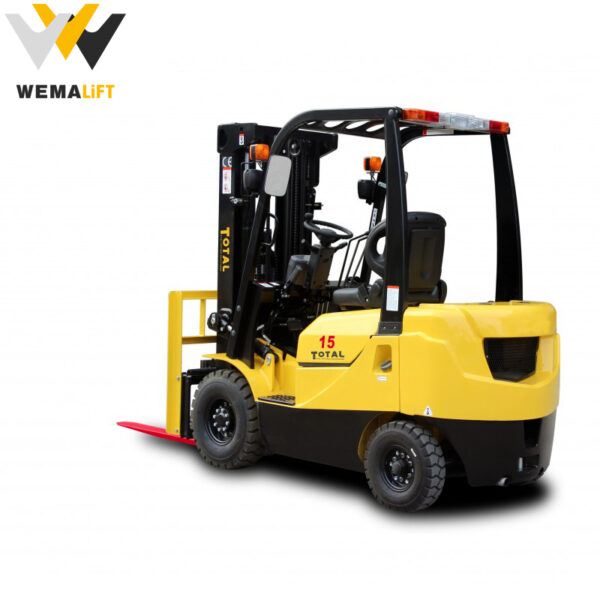

Diesel FORKLIFT: FD10T/FD15T / FD18T
- Description
- Inquiry
Our forklift is combined with durability and ergonomics,providing productivity.
Equipped with specifically designed forklift engine and transmission,and driving axle,
the forklifts are driven by a strong power train with low noise, low vibration, low fuel consumption.
DIMENSIONS:
| FD10T: | FD15T: | FD18T: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 2215 mm | 2295 mm | 2295 mm |
| OVERALL WIDTH: | 1086 mm | 1086 mm | 1086 mm |
| MAST LOWERED HEIGHT: | 1995 mm | 1995 mm | 1995 mm |
| MAST EXTENDED HEIGHT: | 3940 mm | 3940 mm | 3940 mm |
| OVERHEAD GUARD HEIGHT: | 2040 mm | 2040 mm | 2040 mm |
| TURNING RADIUS (outside): | 1975 mm | 2055 mm | 2055 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 2070 mm | 2150 mm | 2150 mm |
| FORK SIZE, (L×W×T): | 920×120×35 mm | 920×120×35 mm | 920×120×35 mm |
WEIGHT:
| FD10T: | FD15T: | FD18T: | |
|---|---|---|---|
| SERVICE WEIGHT: | 2490 KGS | 2820 KGS | 3000 KGS |
