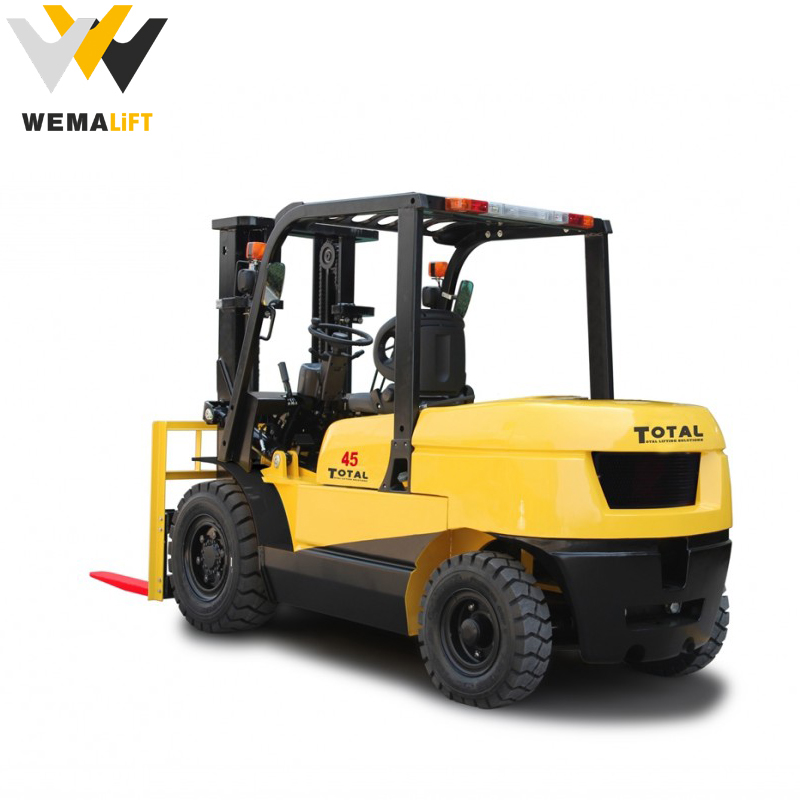

Diesel FORKLIFT: FD40T / FD45T / FDX50T
- Description
- Inquiry
Our forklift is combined with durability and ergonomics,providing productivity.
Equipped with specifically designed forklift engine and transmission,and driving axle,
the forklifts are driven by a strong power train with low noise, low vibration, low fuel consumption.
BASIC CHARATERISTICS:
| MODEL: | RATED CAPACITY: | LOAD CENTER: | STANDARD MAST LIFTING HEIGHT: |
|---|---|---|---|
| FD40T | 4000 KGS | 500 mm | 3000 mm |
| FD45T | 4500 KGS | 500 mm | 3000 mm |
| FDX50T | 5000 KGS | 500 mm | 3000 mm |
DIMENSIONS:
| FD40T: | FD45T: | FDX50T: | |
|---|---|---|---|
| LENGTH TO FORK FACE: | 3220 mm | 3220 mm | 3220 mm |
| OVERALL WIDTH: | 1480 mm | 1480 mm | 1480 mm |
| MAST LOWERED HEIGHT: | 2270 mm | 2270 mm | 2270 mm |
| MAST EXTENDED HEIGHT: | 4255 mm | 4255 mm | 4255 mm |
| OVERHEAD GUARD HEIGHT: | 2320 mm | 2320 mm | 2320 mm |
| TURNING RADIUS (outside): | 2900 mm | 2900 mm | 2940 mm |
| Min. Right Angle Stacking Aisle Width: (Add Load Length and Clearance) | 2920 mm | 2920 mm | 2960 mm |
| FORK SIZE, (L×W×T): 920×100×35 mm | 1070×150×50 mm | 1070×150×50 mm | 1070×150×50 mm |
WEIGHT:
| FD40T: | FD45T: | FDX50T: | |
|---|---|---|---|
| SERVICE WEIGHT: | 6450 KGS | 6680 KGS | 6900 KGS |
