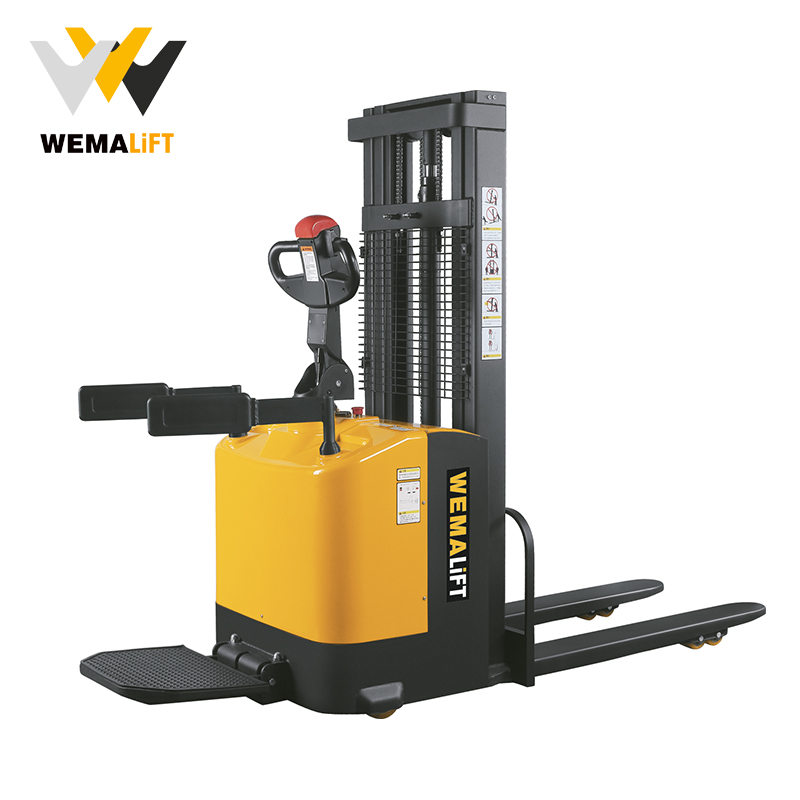

CDD-N Ride-on Full Electric Stacker 2000kg

Categories: ,
  • Description
  • Inquiry

Full Electric Stacker 2000kg

  • Smart design, easy operation in small space.
  • Built-in charger.
  • Brushless motor.
  • With power steering system (EPS).
  • Heavy Duty CJ Mast
  • 2 masts
  • 3 masts







Type CDD-N
Capacity (kg) kg 2000
Max.lifting height (mm) mm 1600/2500/3000/3500/4000/4500/5500
Extended mast height (mm) mm 1990/2950/3450/3950/4450/4950/5285
Lowered mast height (mm) mm 1990/1740/1990/2240/2490/1990/2990
Fork length (mm) mm 1150
Fork width (mm) mm 560/680
Aisle width pallet size1x1.2m( 1.2m cross forks) (mm) mm 2145
Aisle width pallet size 0.8×1.2m (1.2m along forks) (mm) mm 2195
Drive Motor V/kw 48/1.0
Lifting Motor kw 2.2
Battery V/Ah 48/85
Service Weight kg 850/875/900/925/950/1350/1430
